Description

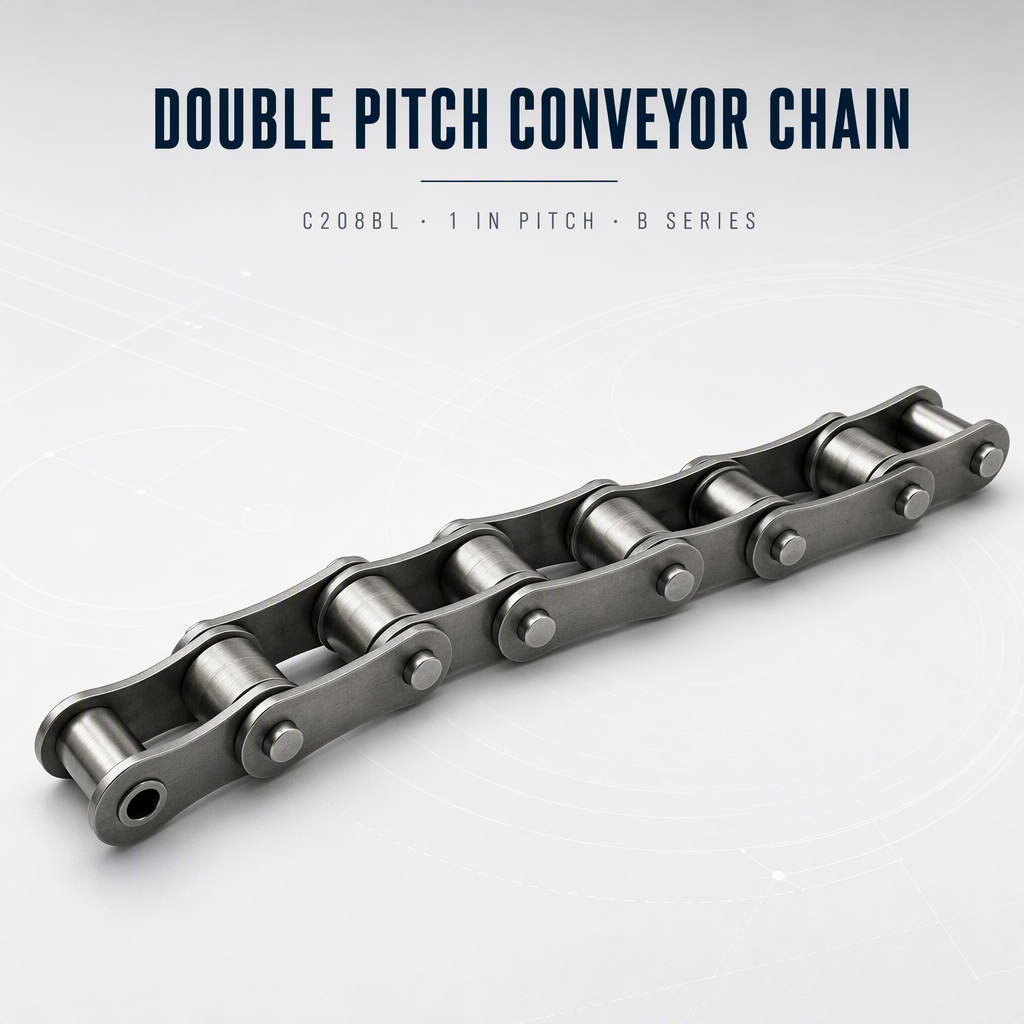

C208BL is a double pitch conveyor roller chain with large rollers and straight side plates, with a pitch of 25.4 mm (1 in). Double pitch chain halves the number of links needed for a given conveyor length while keeping the same strength class, which makes it the standard choice for light to medium duty conveying. This is the B series (European dimensions) version, widely used to replace the original chain on imported equipment.
Available Models
C208BL specification:
| Model | C208BL |
| Pitch | 25.4 mm (1 in) |
| Chain type | Double pitch conveyor roller chain |
| Roller | Large roller |
| Series | B series (European dimensions) |
| Side plates | Straight side plates |
| Duty class | Light to medium duty |
| Material | Carbon steel, with stainless steel available on request |
| Length | Standard coils, or cut to your required length |
| Sprockets | Matching double pitch sprockets available on request |
| Attachments | Available on request |
| Customization | OEM and ODM available, customer brand accepted |
| MOQ | Please contact our sales team to confirm |
| Packing | Standard export packing, customized packing on request |
| Place of origin | Xiamen, China |
Product Features
- Double pitch construction: the pitch is twice that of a standard roller chain, so half the number of links covers the same centre distance
- Pitch 25.4 mm (1 in), selected for light to medium duty conveying duty
- Large rollers on every link, running on the sprocket teeth for smooth travel and low friction
- Straight side plates on both sides of the chain
- Standard plate and pin section, matched to the duty class of the chain
- Carbon steel with a protective finish, and stainless steel available on request
- Cut to the exact length of your conveyor, with matching double pitch sprockets available in the same order
Product Advantages
- Half the number of links compared with a standard pitch chain, which lowers chain cost and chain weight for the same conveying length
- Large rollers tolerate rail wear and small misalignments better, so the line keeps running without constant adjustment
- Light to medium duty rating for continuous operation in a wide range of conveying duties
- Straight side plates let the chain be supplied with attachments where the line also has to carry the load
- Cut to length and supplied with matching sprockets, so the whole conveyor drive arrives in one order
- A damaged section can be replaced link by link, which keeps a conveyor line running
- More than ten years of production and export experience, with technical support from our engineers
Applications
C208BL is used in the following applications. Typical uses include:
- European standard conveying lines
- Replacement of the original chain on imported equipment
- Food machinery
- Packaging and conveying lines
- Light material handling
