Description

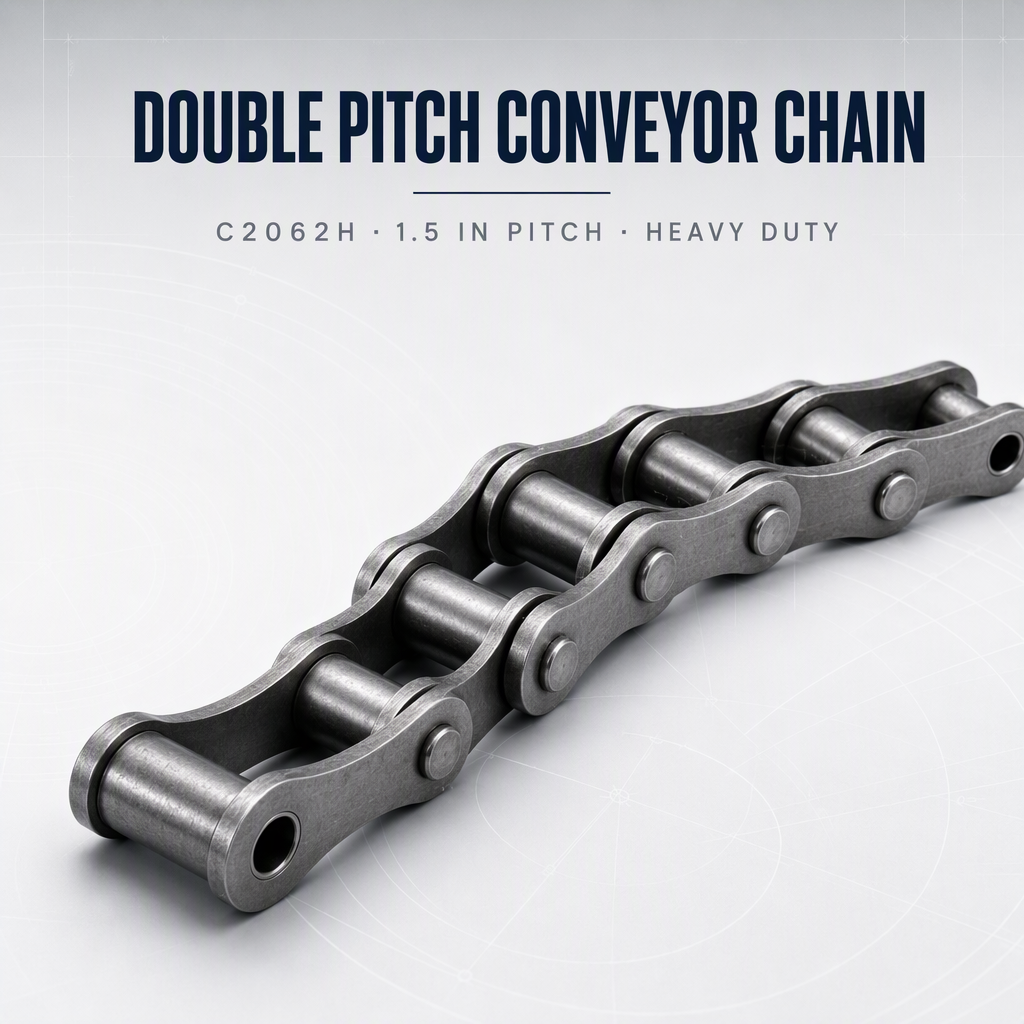

C2062H is a double pitch conveyor roller chain with large rollers and straight side plates, with a pitch of 38.1 mm (1.5 in). Double pitch chain halves the number of links needed for a given conveyor length while keeping the same strength class, which makes it the standard choice for medium duty, heavy duty version conveying. This H version uses a heavier plate and pin section for continuous high load service.
Available Models
C2062H specification:
| Model | C2062H |
| Pitch | 38.1 mm (1.5 in) |
| Chain type | Double pitch conveyor roller chain |
| Roller | Large roller |
| Version | Heavy duty (H series) |
| Side plates | Straight side plates |
| Duty class | Medium duty, heavy duty version |
| Material | Carbon steel, with stainless steel available on request |
| Length | Standard coils, or cut to your required length |
| Sprockets | Matching double pitch sprockets available on request |
| Attachments | Available on request |
| Customization | OEM and ODM available, customer brand accepted |
| MOQ | Please contact our sales team to confirm |
| Packing | Standard export packing, customized packing on request |
| Place of origin | Xiamen, China |
Product Features
- Double pitch construction: the pitch is twice that of a standard roller chain, so half the number of links covers the same centre distance
- Pitch 38.1 mm (1.5 in), selected for medium duty, heavy duty version conveying duty
- Large rollers on every link, running on the sprocket teeth for smooth travel and low friction
- Straight side plates on both sides of the chain
- Heavy duty H version with thicker plates and larger pins for continuous high load conveying
- Carbon steel with a protective finish, and stainless steel available on request
- Cut to the exact length of your conveyor, with matching double pitch sprockets available in the same order
Product Advantages
- Half the number of links compared with a standard pitch chain, which lowers chain cost and chain weight for the same conveying length
- Large rollers tolerate rail wear and small misalignments better, so the line keeps running without constant adjustment
- Medium duty, heavy duty version rating for continuous operation in a wide range of conveying duties
- Straight side plates let the chain be supplied with attachments where the line also has to carry the load
- Cut to length and supplied with matching sprockets, so the whole conveyor drive arrives in one order
- A damaged section can be replaced link by link, which keeps a conveyor line running
- More than ten years of production and export experience, with technical support from our engineers
Applications
C2062H is used in the following applications. Typical uses include:
- Continuous production lines
- Automotive component handling
- Pallet conveyors
- Foundry and metalworking lines
- Conveying with attachments
